Best Product

INFINITY® HEAT PUMP WITH BASEPAN HEATER

EFFICIENCY

• Up to 42.0 SEER

• Up to 15.0 EER

• Up to 15.0 HSPF

STANDARD FEATURES FOR INFINITY OUTDOOR UNIT 38MPRA

• 100% Heating Capacity at 0° F (-17° C)

• 100% Cooling capacity at -22° F (-30° C) without additional kit

• Up to 75% of Heating Capacity at -22° F (-30° C)

• Inverter Compressor

• Up to 42.0 SEER cooling efficiency

• Up to 15.0 EER heating efficiency

• Available in 208/230V

• Sizes: 09 / 12

• Built-in basepan heater

• Auto-restart function

• Refrigerant leakage detection

• Quiet outdoor operation, as low as 55 dB(A)

• Aluminum Golden Hydrophilic pre-coated fins

• 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon

  timely registration

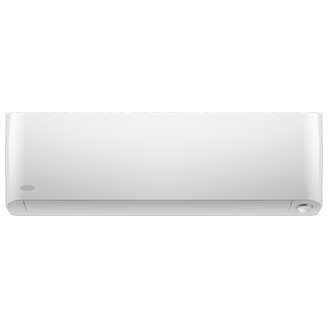

INFINITY® HIGH WALL INDOOR UNIT

STANDARD FEATURES FOR INFINITY HIGH WALL INDOOR UNIT 40PMPHA

• Available in 208/230V

• Sizes: 09/ 12

• Follow Me (senses temperature at handheld remote)

• Heating Setback (46° F Heating Mode)

• Up-down / right-left louver control (fixed or swing)

• Relative Humidity Sensor

• Intelligent Eye (occupancy sensor)

• Built-in Wi-Fi®

• ECO Mode

PERFORMANCE

• OUTDOOR OPERATING RANGE

• Cooling operating range -22° ~ 122° F (-30° ~ 50° C)

• Up to 75% of Heating Capacity at -22° F (-30° C)

• Heating operating range -22° ~ 86° F (-25° ~ 30° C)

BETTER Product

Performance Residential Series Ductless

The Performance series is all about choice. You can choose a heat pump—for cool-season heating and warm-season cooling—or an air conditioner unit. You can even opt for a system that’s designed for open floor plans or multiple rooms.

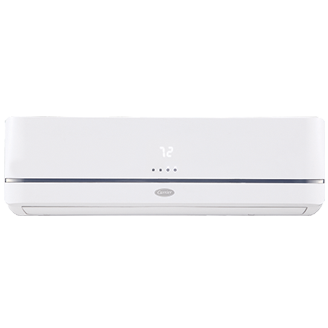

PERFORMANCE™ HEAT PUMP WITH BASEPAN HEATER 38MAR & PERFORMANCE™ HIGH WALL INDOOR UNIT 40MAQ

EFFICIENCY

• Up to 25.0 SEER

• Up to 15.0 EER

• Up to 12.0 HSPF

• Select sizes are ENERGY STAR® certified based on indoor unit pairing

STANDARD FEATURES

• 100% Heating Capacity at 5° F (-15° C)*

• Inverter Compressor

• Up to 25.0 SEER cooling efficiency

• Up to 12.0 HSPF heating efficiency

• Available in 115V and 208/230V

• Built-in basepan heater

• Piping length 82-164' depending on unit capacity

• Refrigerant leakage detection

• Condenser high-temperature protection

• Quiet outdoor sound operation, as low as 52.5 decibels

• 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon

  timely registration

OUTDOOR OPERATING RANGE

• Cooling mode Min-Max DB: Range is -4° ~ 122° F (-20° ~ 50° C)

• Heating mode Min-Max DB: Range is -22° ~ 86° F - Sizes 9-24 (208/230V) -4° ~ 86° F (-20° ~ 30° C) –

  Sizes 9, 12 (115V) & 30, 36 (208/230V)
